Air Power 4

High professional hydraulic/pneumatic blind riveting tool with extraction and multifunction trigger made for heavy industry use.

Air Power 3
Quick Interchangeable System

Quick Interchangeable System

Air Power series nut riveters are equipped with the newly developed quick interchangeable system designed in respect to an easy exchange of mandrels without using any additional tools directly at the workplace and consequently to a substantial time saving.

Ergonomics and Design

AirPower series riveters are distinguished from other products by the timeless design of Prof. Pavel Škarka and sophisticated ergonomy, which allows their easy set up and use in demanding condition of series production.

Ergonomics and Design

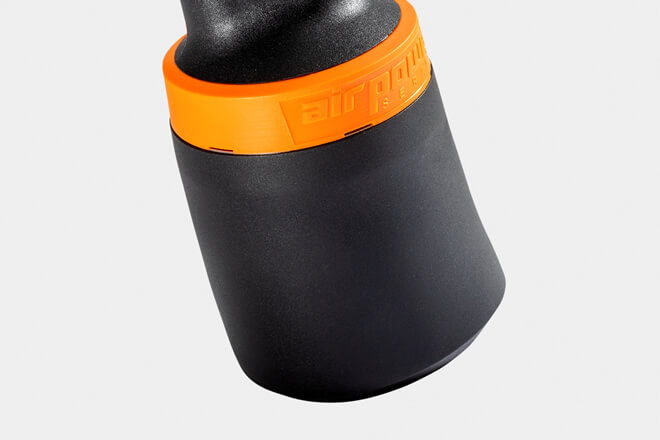

Revolving Air Supply

Revolving Air Supply

Enables manipulation with an air supply hose pipe which does not restrain the operator from riveting in any position.

Parametres

Capacity:
M3-M12
Weight:
1,65kg
Dimensions:
270mm x 285mm x 99mm
Stroke:
7mm
Pressure required:
5-7 Bar
Traction power (6 bar):
18,5kN
Equipment:
Conversion kit blind rivet nuts: M4-M8
